🚚 Construction Machinery / Aerial Work Equipment

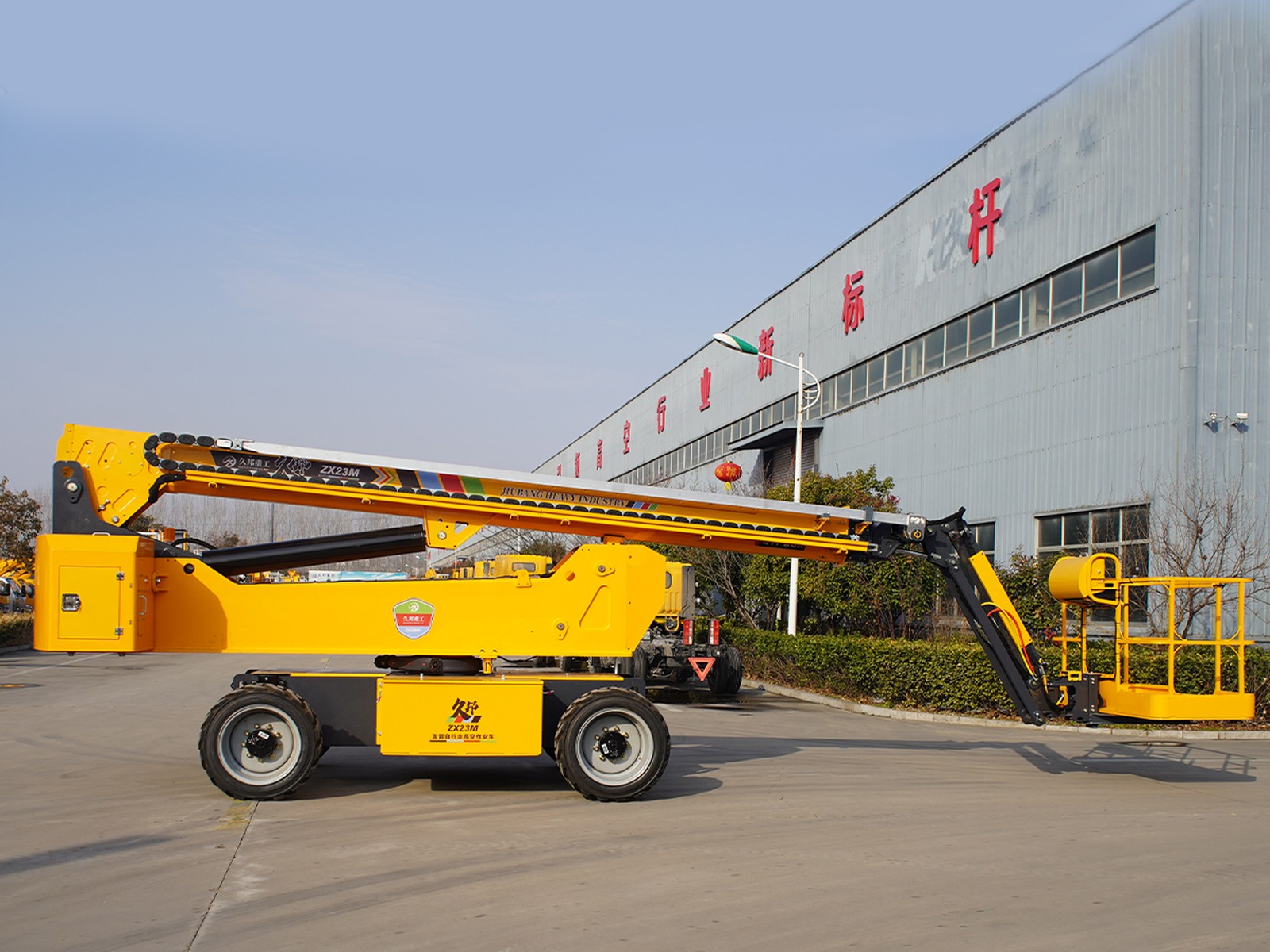

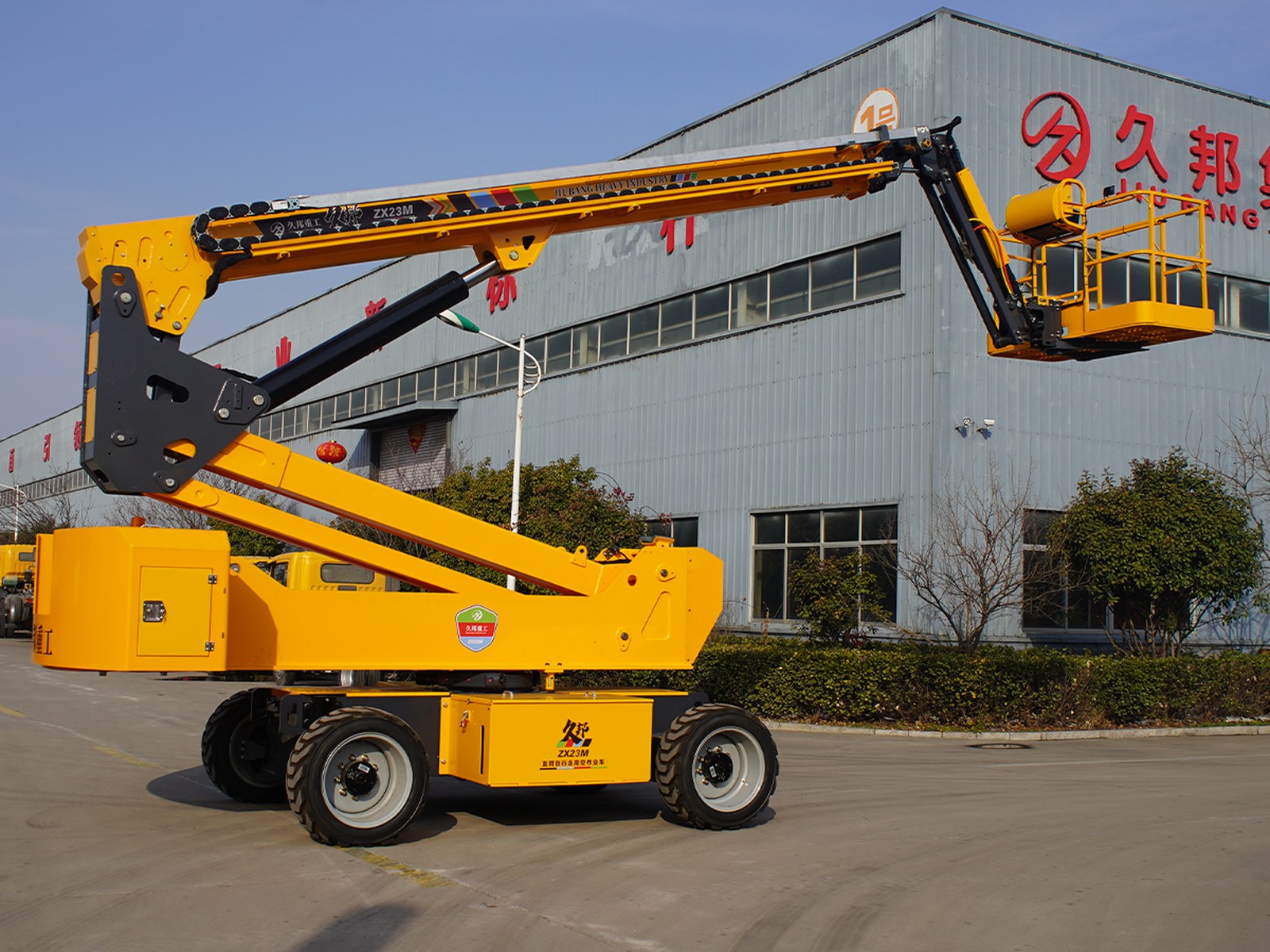

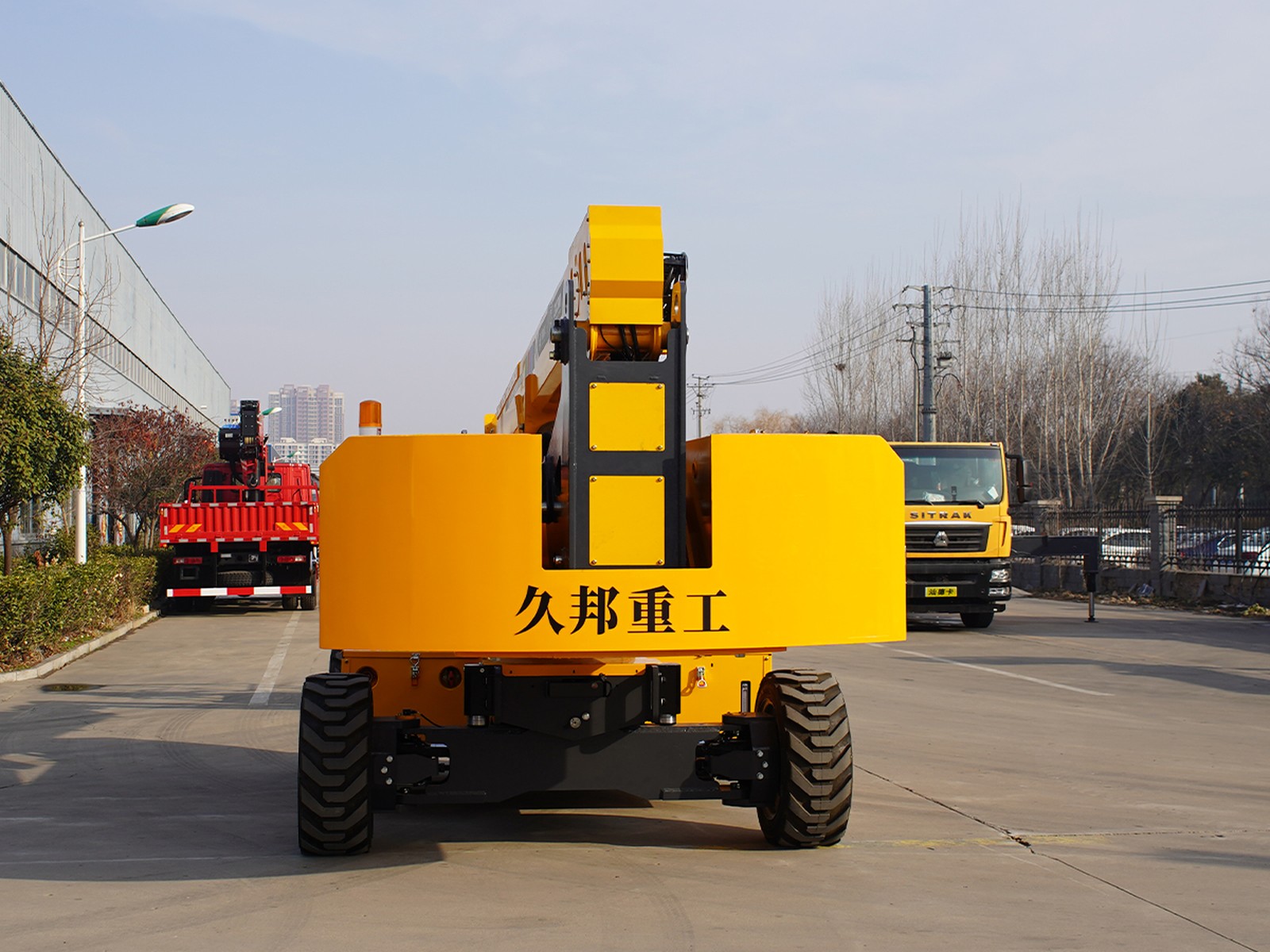

JIUBANG 32m Self-Propelled Telescopic Boom Lift
FOB Inquiry
Other Specifications
| Maximum Working Height | 32.6m |
| Maximum Platform Height | 30.6m |
| Maximum Working Reach | 20m |
| Transport length | 12980mm |
| Overall Machine Width | 2490mm |
| Overall Machine Height | 2950mm |
| Platform Size | 2440×900×1150mm |
| Wheelbase | 3200mm |
| Rated Load | 300kg (unrestricted) / 460kg (restricted) |
| Driving speed | 6km/h |
| Maximum Gradeability (Counterweight End Upward) | 45% |
| Maximum Gradeability (Counterweight End Downward) | 30% |
| Side travel gradeability | 25% |
| Platform Tail Swing Radius | 1930mm |
| Boom luffing range | -4°~+73° |
| Platform Rotation Angle | 160° |
| 最小转弯半径(外侧/内侧) | Inner 3500mm / Outer 6500mm |
| Turntable slewing angle | 360° continuous slewing |
| Machine Weight | 17900kg |
| Battery | 76.8V / 560Ah |
| Power unit | 50V / 25.4kW AC |
| Auxiliary power unit | 12V / 1.9kW DC |
| 行走电机 | 52V / 5.2kW AC |
| Drive mode | 4×4 |
The 32-meter self-propelled straight boom aerial work platform has a maximum working height of 32.6 meters, a platform height of 30.6 meters, a maximum working range of 20 meters, 4×4 drive, a rated load of 300kg (limited to 460kg), and can be fully loaded and directly reach the high position.
The entire machine is driven by an AC motor, with a 76.8V/560Ah battery. The boom's amplitude range is from -4° to +73°. The turntable can rotate continuously at 360°, and the platform can rotate at 160°. The tail swing is small and the turning radius is compact, making it suitable for high-altitude operations in factories and venues.
Factory direct supply, supporting one-stop services including whole vehicle customization, export documents, sea logistics and after-sales parts.
