🚚 Construction Machinery / Aerial Work Equipment

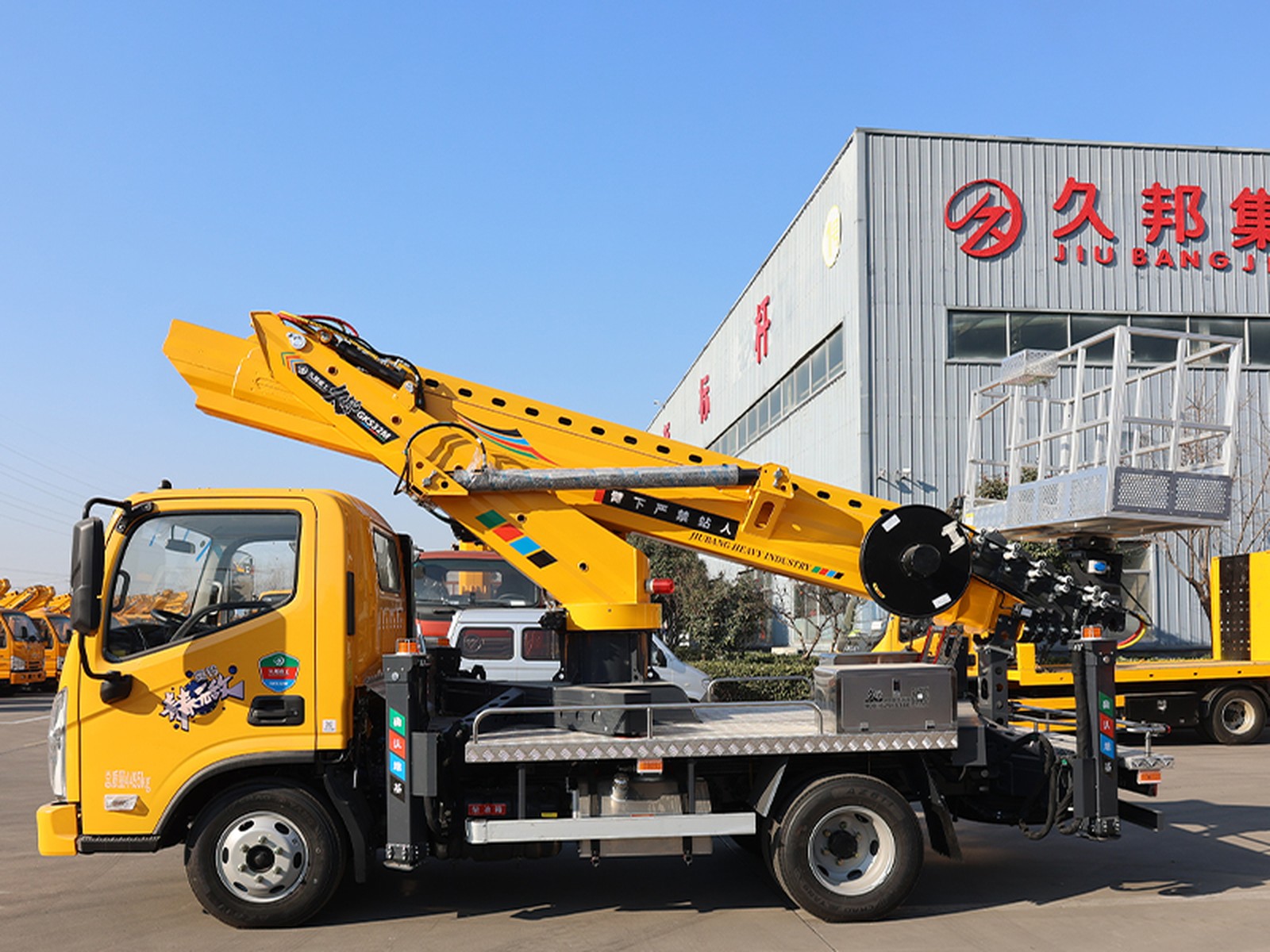

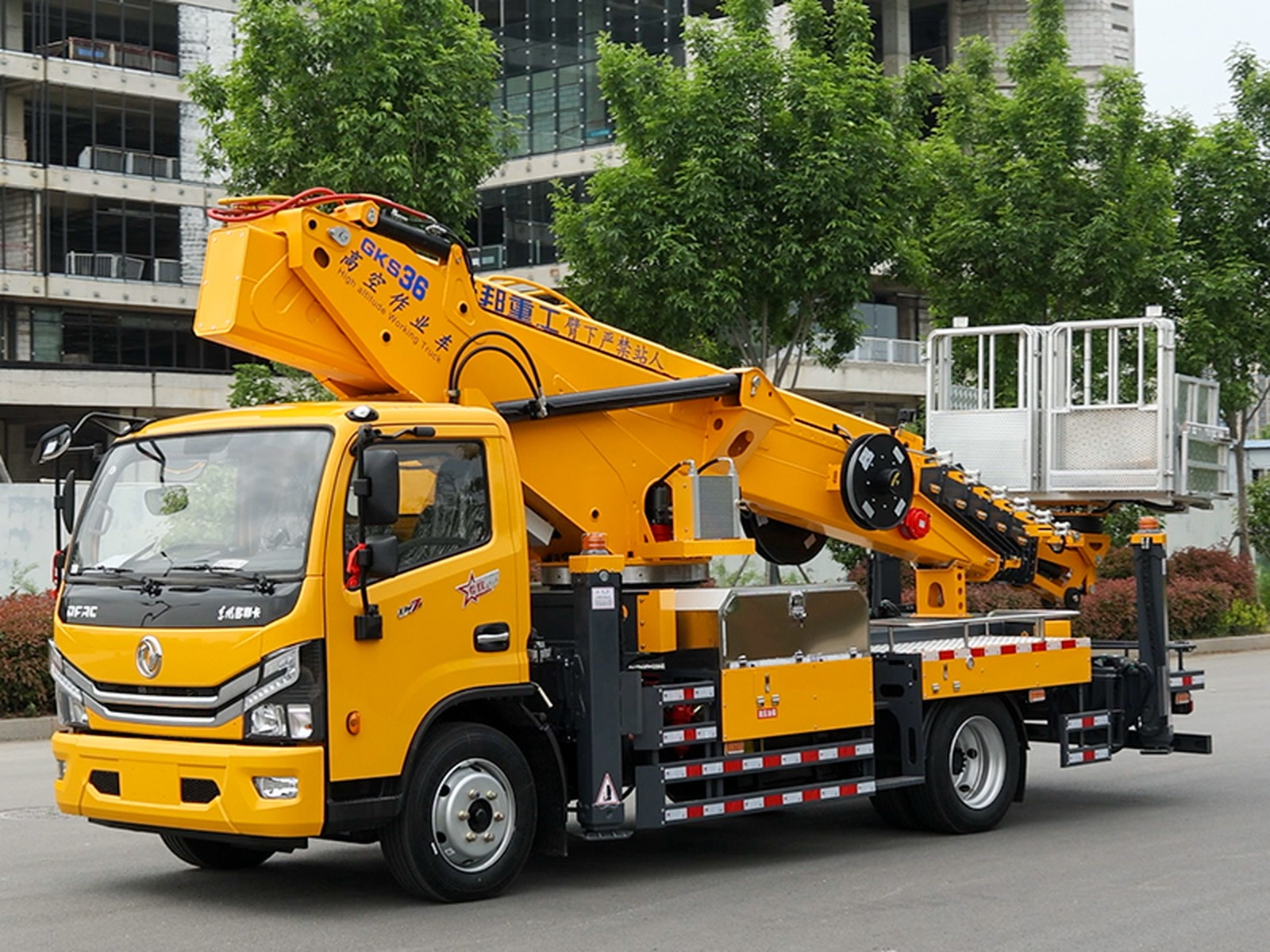

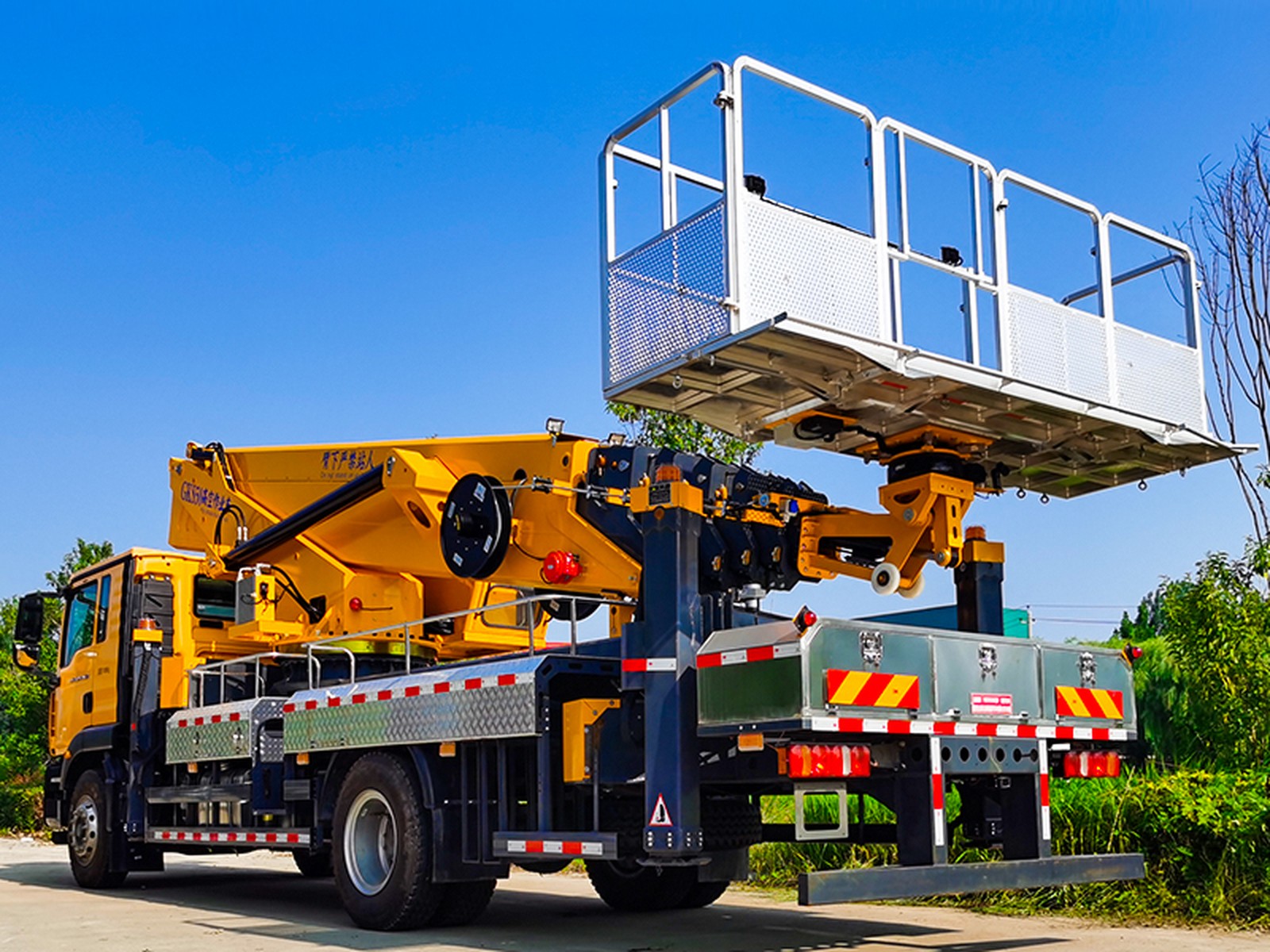

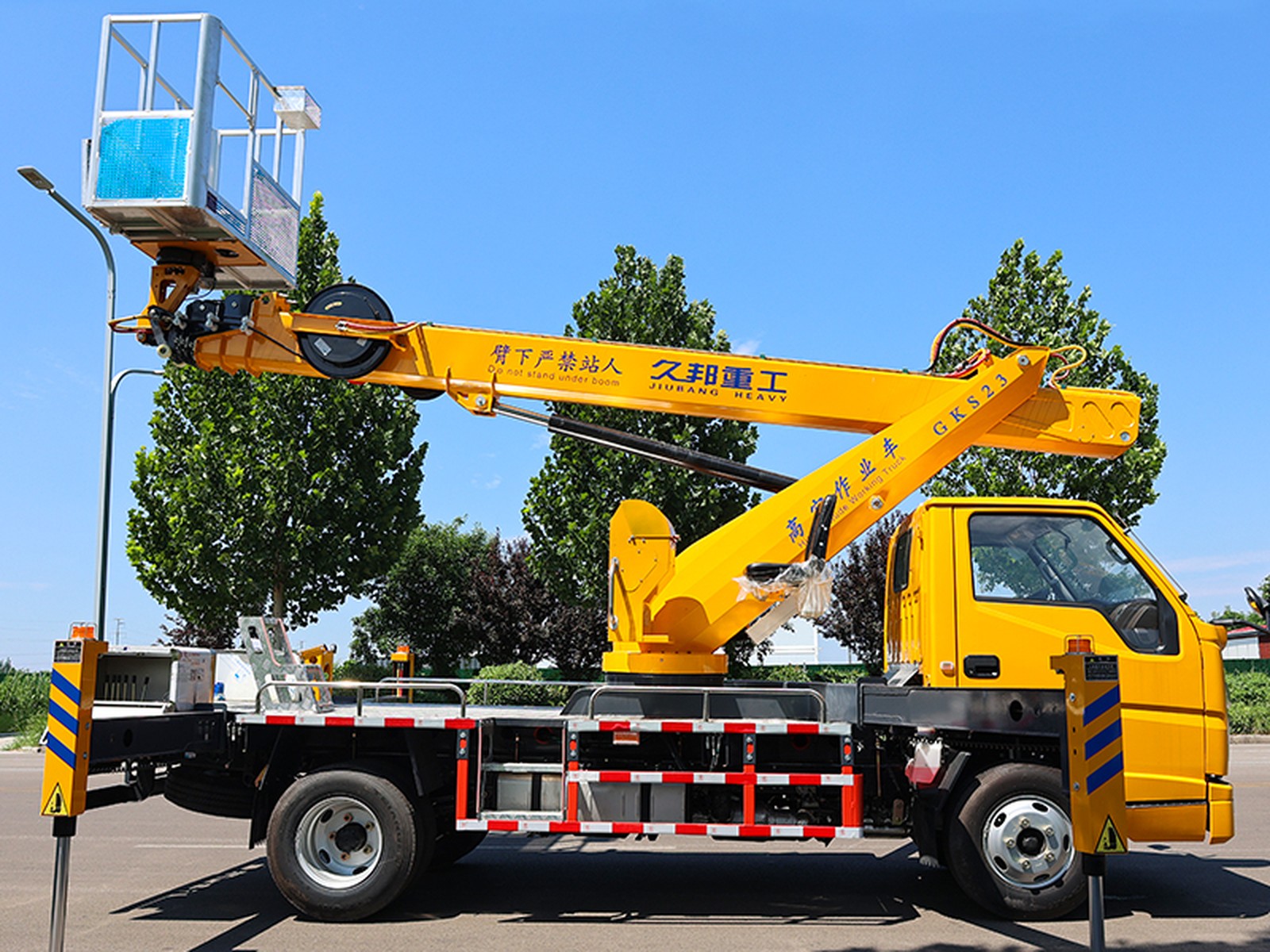

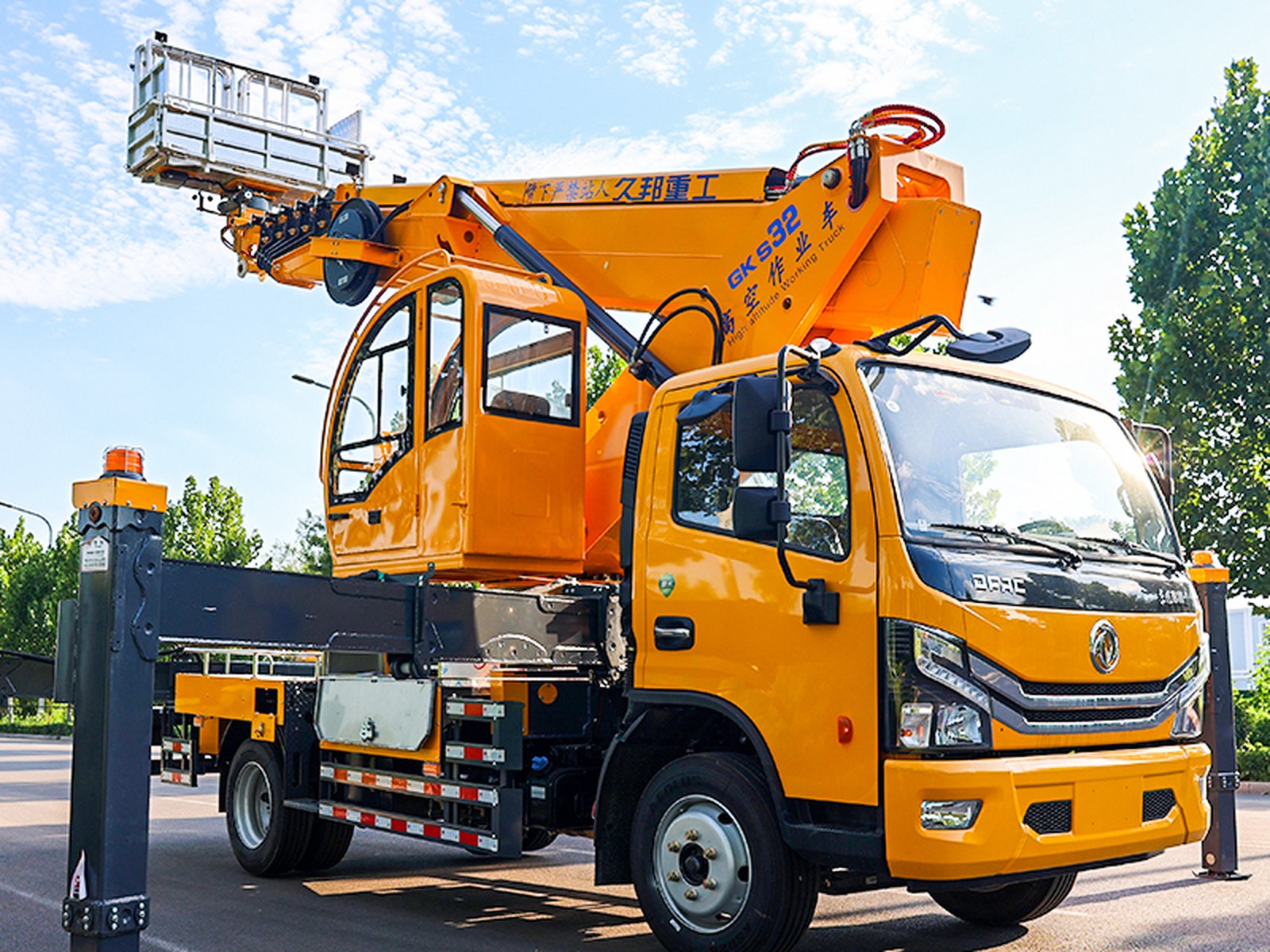

JIUBANG 27m Aerial Work Truck
FOB Inquiry
Other Specifications
| Chassis Brand | JMC / Isuzu / Qingling / Foton / JAC |
| Engine | Isuzu |
| Maximum horsepower | 122HP |
| Emission Standard | China VI emission standard |
| Drive mode | Rear-wheel drive |
| Number of tires | 2 front + 4 rear |
| Braking method | Hydraulic brake |
| Cab occupancy | Single row, 2 seats |
| Air conditioner | Available |
| Overall Dimensions | 5595×2000×2980mm |
| Curb Weight | 4495kg |
| Wheelbase | 3360mm |
| Maximum Travel Speed | 110km/h |
| Approach Angle | 27° |
| Departure angle | 11° |
| Maximum Working Height | 27m |
| Working Reach at Maximum Working Height | 3m |
| Maximum Working Reach | 12m |
| Working Height at Maximum Working Reach | 17m |
| Work Platform Load | 200kg |
| Suspended Platform Dimensions | 1400×710×1200mm |
| Boom type | 5-section hexagonal working boom |
| Boom telescopic structure | Hydraulic cylinder plus steel wire rope type |
| Slewing Angle | 360° continuous slewing |
| Outrigger | Front V-type and rear H-type outriggers, independently adjustable |
| Outrigger Span | Lateral 4140mm / Longitudinal 4300mm |
| Number of luffing cylinders | 1 |
| Power take-off system | Mechanical operation |
| Operation Mode | Remote control / Manual |
| Emergency Operation | Automatic emergency operation |
| Control System | CAN bus control system |
| Leveling system | Automatic leveling |
| Control Voltage | 12V |
The 27-meter aerial work platform has a maximum working height of 27 meters and a maximum working range of 12 meters. It is equipped with 5 hexagonal telescopic arms and a 360° continuous rotating turntable. The front V and rear H outriggers are independently adjustable, making it suitable for complex site operations.
Optional chassis options include Jiangling Shunda, Jianghuai Kangling or Isuzu, with 122 horsepower and National VI emission standards. It supports dual operation modes of remote control and manual operation, CAN bus control, and automatic platform leveling.
Factory direct supply, supporting one-stop services including whole vehicle customization, export documents, sea logistics and after-sales parts.
Delivery & Logistics
Lead timeExact delivery date within 3 working days of order confirmation
Sea Freight15–35 days to major ports worldwide
Destination PortsAny major port worldwide — Africa, Middle East, Central Asia, Southeast Asia, Latin America, Eastern Europe
DocumentationCO / Form E, commercial invoice, packing list, B/L, third-party inspection report
