SX33195D406
| Drive Form | 8X4 |
| Wheelbase | 1950+3825+1400mm |
| Engine | Weichai WP12.430E62 |
| Transmission | Fast 12 |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.55m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard configuration: three-stage metal bumper, Tianxing Jianzhiya version, multimedia system, desert air filter, reinforced transmission shaft, transmission telescopic shaft with flexible shift, power take-off, engine under-vehicle start (WP model), water tank protective fence, electric turnover; optional: oil bath air filter, double chamber fuel tank + fuel tank water heating, retarder, reserved water tank space |
| Version | Highway Standard Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP12.430E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 11.6L |
| Emission Standard | China VI |
| Max Horsepower | 430hp |
| Max Output Power | 316kW |
| Max Torque | 2100N·m |
| Max Torque Speed | 1000-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast 12 |
| Transmission Brand | Fast |
| Forward Gears | 12-speed |
| Reverse Gears | 2 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 7.6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Tilt | Electric |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×300(8+7)mm |
| Front Axle | MAN7.5T Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | 16T MAN Double Stage |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |

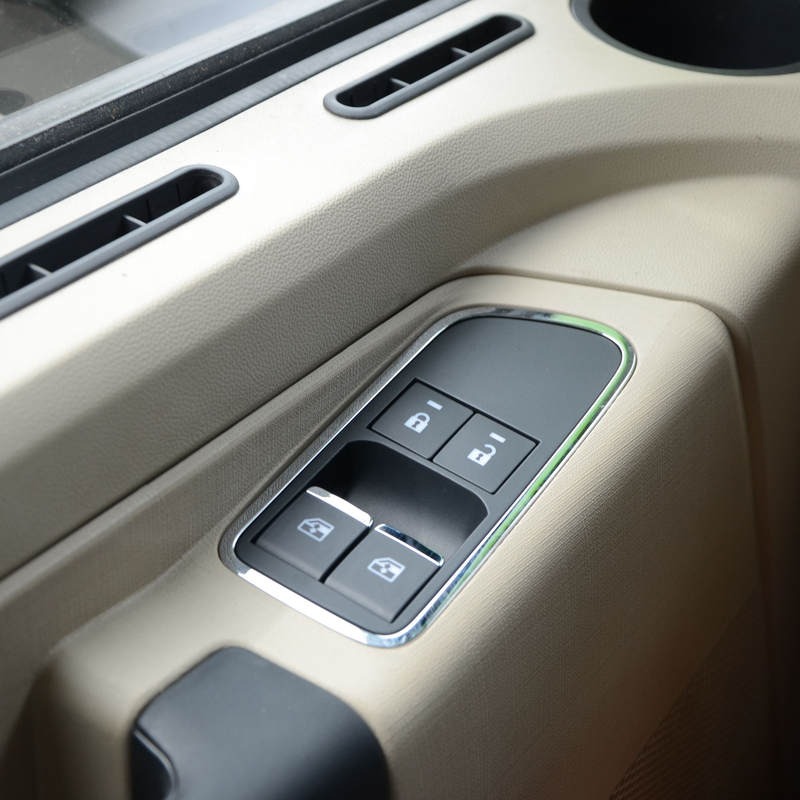

| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
SX33195D276
| Drive Form | 8X4 |
| Wheelbase | 1800+2675+1400mm |
| Engine | Weichai WP12.430E62 |
| Transmission | Fast 12 |
| Rear Axle Ratio | 5.92 |
| Body Length | 8.75m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Three-stage metal bumper, Skyhealth Smart Edition, oil bath air filter, reinforced transmission shaft, ABS, transmission flexible shaft with flexible shift, power take-off, engine under-vehicle start (WP model), water tank protective barrier |
| Energy Type | Diesel |
| Engine Model | Weichai WP12.430E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 11.6L |
| Emission Standard | China VI |
| Max Horsepower | 430hp |
| Max Output Power | 316kW |
| Max Torque | 2100N·m |
| Max Torque Speed | 1000-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast 12 |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 12-speed |
| Reverse Gears | 2 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 5.8m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Cab Tilt | Electric |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Capacity | 300L |
| Frame Size | 850×300(8+5)mm |
| Front Axle | MAN7.5T Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | 16T MAN Double Stage |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring + four-horse riding |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
SX3319XD426
| Drive Form | 8X4 |
| Wheelbase | 1950+4025+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | 13-speed gearbox |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.95m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 18°(°) |
| Origin | Xi’an, Shaanxi |
| Version | Super Reinforced Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | 13-speed gearbox |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 2 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 8m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
SX3319XD486
| Drive Form | 8X4 |
| Wheelbase | 1950+4625+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | Fast 13 |
| Rear Axle Ratio | 5.92 |
| Body Length | 11.55m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 18°(°) |
| Origin | Xi’an, Shaanxi |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | Fast 13 |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 3 pcs |
| Cargo Box Length | 8.6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Capacity | 400L |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
SX32595D424
| Drive Form | 6X4 |
| Wheelbase | 4175+1400mm |
| Engine | Weichai WP12.460E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 8.95m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 12.5t |
| Rated Payload | 12.37t |
| Gross Weight | 25t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 20°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard: Bumper for engineering vehicles, oil bath air filter, telescopic shaft with flexible shift, hydraulic suspension, power take-off, maintenance-free battery, water tank protection fence, engineering appearance, speed limit 89km/h; Optional: Skyhealth Smart Edition, electric flip, ventilated air main seat, 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), large box floor heating, mining pattern tires, southwest dump truck configuration package (standard ventilated air main seat, electric heating rearview mirror, LED headlights), expansion configuration package (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Mining Reinforced Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP12.460E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 11.6L |
| Emission Standard | China VI |
| Max Horsepower | 460hp |
| Max Output Power | 338kW |
| Max Torque | 2200N·m |
| Max Torque Speed | 1000-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320 (8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 7000kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 10/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 10 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX32595D464
| Drive Form | 6X4 |
| Wheelbase | 4575+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 9.45m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 12.5t |
| Rated Payload | 12.37t |
| Gross Weight | 25t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 19°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard: Bumper for engineering vehicles, oil bath air filter, telescopic shaft with flexible shift, hydraulic suspension, power take-off, maintenance-free battery, water tank protection fence, engineering appearance, speed limit 89km/h; Optional: Skyhealth Smart Edition, electric flip, ventilated air main seat, 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), large box floor heating, mining pattern tires, southwest dump truck configuration package (standard ventilated air main seat, electric heating rearview mirror, LED headlights), expansion configuration package (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Mining Reinforced Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 6.5m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320 (8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 7000kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 10/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 10 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX33195D346
| Drive Form | 8X4 |
| Wheelbase | 1950+3225+1400mm |
| Engine | Weichai WP12.460E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 9.75m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard: Bumper, desert air filter, telescopic shaft with flexible shift, hydraulic suspension, power take-off, maintenance-free battery, water tank protection fence, engineering appearance, speed limit of 89km/h; Optional: X5000 extended high-top cab without cowl, Tianxingjian intelligent version, electric flip, large box floor heating, mining pattern tires, 180Ah maintenance-free battery, expansion configuration package (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Highway Standard Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP12.460E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 11.6L |
| Emission Standard | China VI |
| Max Horsepower | 460hp |
| Max Output Power | 338kW |
| Max Torque | 2200N·m |
| Max Torque Speed | 1000-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 6.8m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×300(8+7)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX33195D406
| Drive Form | 8X4 |
| Wheelbase | 1950+3825+1400mm |
| Engine | Weichai WP13.480E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.55m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard: Bumper, desert air filter, telescopic shaft with flexible shift, hydraulic suspension, power take-off, maintenance-free battery, water tank protection fence, engineering appearance, speed limit of 89km/h; Optional: X5000 extended high-top cab without cowl, Tianxingjian intelligent version, electric flip, large box floor heating, mining pattern tires, 180Ah maintenance-free battery, expansion configuration package (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Highway Standard Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.480E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 480hp |
| Max Output Power | 353kW |
| Max Torque | 2300N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 7.6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×300(8+7)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX33195D406
| Drive Form | 8X4 |
| Wheelbase | 1950+3825+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.55m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard configuration: Bumper for engineering vehicles, oil bath air filter, telescopic shaft with flexible shift, hydraulic suspension, power take-off, maintenance-free battery, water tank protection fence, engineering appearance, speed limit 89km/h; Optional: X5000 extended high-top cab without cowl, Tianxingjian intelligent version, electric turnover, large box floor heating, mining pattern tire, ventilated air main seat, 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), southwest dump truck configuration package (ventilated air main seat, electric heating rearview mirror, LED headlight), expansion configuration package (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Super Reinforced Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 7.6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320 (8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX3319XD426
| Drive Form | 8X4 |
| Wheelbase | 1950+4025+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.95m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 18°(°) |
| Origin | Xi’an, Shaanxi |
| Remarks | Standard configuration: Bumper for engineering vehicles, oil bath air filter, telescopic shaft with flexible shift, hydraulic suspension, power take-off, maintenance-free battery, water tank protection fence, engineering appearance, speed limit 89km/h; Optional: X5000 extended high-top cab without cowl, Tianxingjian intelligent version, electric turnover, large box floor heating, mining pattern tire, ventilated air main seat, 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), southwest dump truck configuration package (ventilated air main seat, electric heating rearview mirror, LED headlight), expansion configuration package (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Super Reinforced Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 8m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320 (8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX5259ZLJ5D424
| Drive Form | 6X4 |
| Wheelbase | 4175+1400mm |
| Engine | Weichai WP13.480E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 8.95m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 12.5t |
| Rated Payload | 12.37t |
| Gross Weight | 25t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 20°(°) |
| Origin | Shaanxi Baoji |
| Remarks | Standard configuration: Engineering vehicle bumper, hydraulic suspension, Skyhealth Smart Edition, oil bath air filter, telescopic shaft with flexible shift, power take-off, maintenance-free battery, water tank protection fence, electric window machine, engineering appearance, speed limit 89km/h; Optional: Speed ratio 5.262, Tianxingjian Zhixing Edition (with reversing image), 400L aluminum alloy fuel tank (Reserve tank space)(WP:K424 and above optional,X12:K434 and above optional), LED headlights, retarder (430Ps and above), electric turnover, mining tread tires, ventilated air main seat, 400L double-chamber aluminum alloy fuel tank (Fuel tank water heating), large box floor heating, southwest dump truck configuration package (standard ventilated air main seat, electric heating rearview mirror, LED headlights), expansion kit (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Elite Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.480E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 480hp |
| Max Output Power | 353kW |
| Max Torque | 2300N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | X5000 extended flat-top cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320(8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 7000kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring + four-saddle bolt |
| Leaf Springs | 10/12 |
| Tire Spec | 12.00R20 16PR |
| Tire Count | 10 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX33195D326
| Drive Form | 8X4 |
| Wheelbase | 1950+3025+1400mm |
| Engine | Weichai WP12.430E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 9.45m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Shaanxi Baoji |
| Remarks | Standard: Engineering vehicle bumper, hydraulic suspension, Skyhealth Smart Edition, desert air filter, telescopic shaft with flexible shift, power take-off, maintenance-free battery, water tank protection fence, electric window machine, engineering appearance, speed limit 89km/h; Optional: Speed ratio 5.262, X5000 extended high-top cab without cowling, Tianxing Jianzhi version (with reversing image), 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), retarder (430Ps and above), 400L aluminum alloy fuel tank (reserved water tank space)(K346 and above optional), LED headlights, electric turnover, large box floor heating, oil bath air filter, off-road patterned tires, mining patterned tires, expansion kit (co-driver ashtray, kettle seat, jack, crowbar, vehicle kit) |
| Version | Highway Standard Elite Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP12.430E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 11.6L |
| Emission Standard | China VI |
| Max Horsepower | 430hp |
| Max Output Power | 316kW |
| Max Torque | 2100N·m |
| Max Torque Speed | 1000-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | CR+DOC+DPF+Hi_SCR |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 6.5m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cabin | X5000 extended flat-top cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×300(8+7)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring + four-saddle bolt |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX33195D446
| Drive Form | 8X4 |
| Wheelbase | 1950+4225+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 11.15m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Shaanxi Baoji |
| Remarks | Standard: Bumper for engineering vehicles, air suspension, Skyhealth Smart Edition, oil bath air filter, telescopic shaft with flexible gear shift, power take-off, maintenance-free battery, water tank protection fence, electric shaking window, engineering appearance, speed limit 89km/h; Optional: Speed ratio 5.262, X5000 extended high-top cab without cowl, Tianxing Jian Zhixing version (with reversing image), 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), North package, reserved water tank space, LED headlights, electric flip, off-road pattern tires, ventilated air main seat, retarder, large box floor heating, 600L aluminum alloy fuel tank, mining pattern tires, southwest dump truck configuration package (ventilated air main seat, electric heated rearview mirror, LED headlight), expansion kit (co-driver ashtray, kettle holder, jack, crowbar, vehicle kit) |
| Version | Elite Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 8.2m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cabin | X5000 extended flat-top cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320(8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring + four-saddle bolt |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX5259ZLJ5D434
| Drive Form | 6X4 |
| Wheelbase | 4375+1400mm |
| Engine | Weichai WP13.550E62 |
| Transmission | Fast Q12MOQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 9.15m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 12.5t |
| Rated Payload | 12.37t |
| Gross Weight | 25t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 20°(°) |
| Origin | Shaanxi Baoji |
| Remarks | Standard: Bumper for engineering vehicles, telescopic shaft with flexible shift, hydraulic suspension, Skyhealth Smart Edition, oil bath air filter, power take-off, maintenance-free battery, water tank protection fence, electric window swing, engineering appearance, speed limit 89km/h; Optional: Speed ratio 5.262, Tianxing Jianzhi version (with reversing image), LED headlights, electric turnover, 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), large box floor heating, mining pattern tires, expansion kit (co-driver ashtray, instrument panel ashtray, jack, crowbar, vehicle kit), ventilated air main seat, southwest dump truck configuration package (ventilated air main seat, electric heating rearview mirror, LED headlights) |
| Version | Elite Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP13.550E62 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 550hp |
| Max Output Power | 405kW |
| Max Torque | 2550N·m |
| Max Torque Speed | 950-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | Electronically controlled high pressure common rail, SCR post-treatment |
| Transmission Model | Fast Q12MOQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 12-speed |
| Reverse Gears | 2 pcs |
| Housing Material | Aluminum Housing |
| Cargo Box Length | 6.2m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cabin | X5000 extended flat-top cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320(8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 7000kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring + four-saddle bolt |
| Leaf Springs | 10/12 |
| Tire Spec | 12.00R20 16PR |
| Tire Count | 10 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX3319XE6
| Drive Form | 8X4 |
| Wheelbase | 1950+4825+1400mm |
| Engine | Xi'an Cummins M15NS6B600 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 11.75m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Shaanxi Baoji |
| Remarks | Standard: Bumper for engineering vehicles, air suspension, Skyhealth Smart Edition, oil bath air filter, telescopic shaft with flexible gear shift, power take-off, maintenance-free battery, water tank protection fence, electric shaking window, engineering appearance, speed limit 89km/h; Optional: Speed ratio 5.262, X5000 extended high-top cab without cowl, Tianxing Jian Zhixing version (with reversing image), 400L double-chamber aluminum alloy fuel tank (fuel tank water heating), North package, reserved water tank space, LED headlights, electric flip, off-road pattern tires, ventilated air main seat, retarder, large box floor heating, 600L aluminum alloy fuel tank, mining pattern tires, southwest dump truck configuration package (ventilated air main seat, electric heated rearview mirror, LED headlight), expansion kit (co-driver ashtray, kettle holder, jack, crowbar, vehicle kit) |
| Version | Elite Edition |
| Energy Type | Diesel |
| Engine Model | Xi'an Cummins M15NS6B600 |
| Engine Brand | Xi'an Cummins |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 14.5L |
| Emission Standard | China VI |
| Max Horsepower | 600hp |
| Max Output Power | 441kW |
| Max Torque | 2800N·m |
| Max Torque Speed | 900-1400rpm |
| Rated Speed | 1800rpm |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 8.8m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cabin | X5000 extended flat-top cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L |
| Frame Size | 850×320(8+7+8)mm |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring + four-saddle bolt |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| A/C Type | Automatic |
| Power Mirrors | ○ |
| Heated Mirrors | ○ |
| Electronic Central Lock | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
SX32595D404TL
| Drive Form | 6X4 |
| Wheelbase | 3975+1400mm |
| Engine | Weichai WP13NG460E61 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 8.85m |
| Body Width | 2.55m |
| Body Height | 3.6m |
| Front Track | 2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 12.5t |
| Rated Payload | 12.37t |
| Gross Weight | 25t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 16°(°) |
| Departure Angle | 25°(°) |
| Origin | Xi’an, Shaanxi |
| Version | Mining Reinforced Edition |
| Energy Type | LNG |
| Engine Model | Weichai WP13NG460E61 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | LNG |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 460hp |
| Max Output Power | 338kW |
| Max Torque | 2300N·m |
| Max Torque Speed | 1100-1300rpm |
| Rated Speed | 1900rpm |
| Engine Type | Theoretical air-fuel ratio, high-pressure EGR, three-way catalyst |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 5.8m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Suspension | 4-point Air Suspension |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Cab Tilt | Electric |
| Driver Seat Type | Air Suspension Seat |
| Gas Tank Capacity | 500L |
| Frame Size | 12.00R20 16PRmm |
| Front Axle Load Capacity | 7000kg |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Leaf Springs | 10/12 |
| Tire Spec | 12.00R20 16PR |
| Tire Count | 10 pcs |
| ABS | ● |
| Multifunction Steering Wheel | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ● |
| Heated Mirrors | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Parking Radar | ● |
| Center Console Screen | ● |
| GPS/BeiDou Recorder | ● |
| AUX/USB Input | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
| Telematics System | ● |
SX33195D386TL
| Drive Form | 8X4 |
| Wheelbase | 1950+3625+1400mm |
| Engine | Weichai WP13NG460E61 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.25m |
| Body Width | 2.55m |
| Body Height | 3.6m |
| Front Track | 2070/2070mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 16°(°) |
| Departure Angle | 25°(°) |
| Origin | Xi’an, Shaanxi |
| Version | Highway Standard Edition |
| Energy Type | LNG |
| Engine Model | Weichai WP13NG460E61 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | LNG |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 460hp |
| Max Output Power | 338kW |
| Max Torque | 2300N·m |
| Max Torque Speed | 1100-1300rpm |
| Rated Speed | 1900rpm |
| Engine Type | Theoretical air-fuel ratio, high-pressure EGR, three-way catalyst |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 7.2m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Suspension | 4-point Air Suspension |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Cab Tilt | Electric |
| Driver Seat Type | Air Suspension Seat |
| Gas Tank Capacity | 600L |
| Frame Size | (970-850)×300(8+7)mm |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring (four-saddle bolt) rear suspension |
| Leaf Springs | 10/10/10 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| Multifunction Steering Wheel | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ● |
| Heated Mirrors | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Parking Radar | ● |
| Center Console Screen | ● |
| GPS/BeiDou Recorder | ● |
| AUX/USB Input | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
| Telematics System | ● |
SX33195D406TL
| Drive Form | 8X4 |
| Wheelbase | 1950+3825+1400mm |
| Engine | Weichai WP13NG460E61 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 10.65m |
| Body Width | 2.55m |
| Body Height | 3.6m |
| Front Track | 2070/2070mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 16°(°) |
| Departure Angle | 25°(°) |
| Origin | Xi’an, Shaanxi |
| Version | Highway Standard Edition |
| Energy Type | LNG |
| Engine Model | Weichai WP13NG460E61 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | LNG |
| Displacement | 12.54L |
| Emission Standard | China VI |
| Max Horsepower | 460hp |
| Max Output Power | 338kW |
| Max Torque | 2300N·m |
| Max Torque Speed | 1100-1300rpm |
| Rated Speed | 1900rpm |
| Engine Type | Theoretical air-fuel ratio, high-pressure EGR, three-way catalyst |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 7.6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Suspension | 4-point Air Suspension |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Cab Tilt | Electric |
| Driver Seat Type | Air Suspension Seat |
| Gas Tank Capacity | 600L |
| Frame Size | (970-850)×300(8+7)mm |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | Drum Drive Axle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf spring (four-saddle bolt) rear suspension |
| Leaf Springs | 10/10/10 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| Multifunction Steering Wheel | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ● |
| Heated Mirrors | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Parking Radar | ● |
| Center Console Screen | ● |
| GPS/BeiDou Recorder | ● |
| AUX/USB Input | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
| Telematics System | ● |
SX33195D486TL2
| Drive Form | 8X4 |
| Wheelbase | 1950+4625+1400mm |
| Engine | Weichai WP15NG630E68 |
| Transmission | Fast S13MDQ |
| Rear Axle Ratio | 5.92 |
| Body Length | 11.55m |
| Body Width | 2.55m |
| Body Height | 3.6m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Xi’an, Shaanxi |
| Version | Elite Edition |
| Energy Type | Diesel |
| Engine Model | Weichai WP15NG630E68 |
| Engine Brand | Weichai |
| Cylinders | 6 cyl |
| Fuel Type | LNG |
| Displacement | 14.56L |
| Emission Standard | China VI |
| Max Horsepower | 630hp |
| Max Output Power | 463kW |
| Max Torque | 2750N·m |
| Transmission Model | Fast S13MDQ |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 2 pcs |
| Cargo Box Length | 8.6m |
| Cargo Box Width | 2.35m |
| Cargo Box Height | 1.5m |
| Cargo Box Type | Dump Type |
| Unloading Type | Dump Type |
| Cabin | Extended flat cab |
| Cab Width | 2490mm |
| Seating Capacity | 2 persons |
| Driver Seat Type | Air Suspension Seat |
| Gas Tank Capacity | 1200L |
| Frame Size | 850×320 (8+7+8)mm |
| Front Axle | 9.5T |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | 25T drum transaxle |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Axle Ratio | 5.92 |
| Suspension Type (F/R) | Multi-leaf Springs + 4 U-bolts |
| Leaf Springs | 14/14/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| Multifunction Steering Wheel | ● |
| A/C Type | Automatic |
| Power Windows | ● |
| Power Mirrors | ● |
| Heated Mirrors | ● |
| Reversing Camera | ○ |
| Remote Key | ● |
| Electronic Central Lock | ● |
| Center Console Screen | ● |
| GPS/BeiDou Recorder | ● |
| AUX/USB Input | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
| Hydraulic Retarder | ● |
| Telematics System | ● |
SX3319XE6
| Drive Form | 8X4 |
| Wheelbase | 1950+3225+1400mm |
| Engine | Xi'an Cummins M13NS6B600 |
| Transmission | Fast 13JSDX260T |
| Body Length | 9.75m |
| Body Width | 2.55m |
| Body Height | 3.5m |
| Front Track | 2036/2036mm |
| Rear Track | 1860/1860mm |
| Curb Weight | 15.5t |
| Rated Payload | 15.37t |
| Gross Weight | 31t |
| Weight Class | Heavy-duty Truck |
| Approach Angle | 17°(°) |
| Departure Angle | 17°(°) |
| Origin | Shaanxi Baoji |
| Remarks | Skyhealth Smart Edition 12.8 inch floating screen, wireless charging for mobile phones, wireless charging for mobile phones, integrated auxiliary unloading system, integrated safety monitoring and early warning system,ESC, side tool box, door guard plate, ring curtain, electronically controlled hydraulic steering gear |
| Version | Plateau Edition |
| Energy Type | Diesel |
| Engine Model | M13NS6B600 |
| Engine Brand | Xi'an Cummins |
| Cylinders | 6 cyl |
| Fuel Type | Diesel |
| Displacement | 12.5L |
| Emission Standard | China VI |
| Max Horsepower | 600hp |
| Max Output Power | 441kW |
| Max Torque | 2750N·m |
| Max Torque Speed | 900-1300rpm |
| Rated Speed | 1800rpm |
| Engine Type | DOC+DPF+SCR+ASC |
| Transmission Model | 13JSDX260T |
| Transmission Brand | Fast |
| Shift Type | Manual |
| Forward Gears | 13-speed |
| Reverse Gears | 1 pcs |
| Cargo Box Length | 6.8m |
| Cargo Box Width | 2.3m |
| Cargo Box Height | 1.5m |
| Tilt Type | electric control |
| Cabin | flat-top |
| Seating Capacity | 2 persons |
| Cab Tilt | Electric |
| Driver Seat Type | Air Suspension Seat |
| Fuel Tank Capacity | 400L |
| Front Axle | Drum Front Axle |
| Front Axle Load Capacity | 6500/6500kg |
| Rear Axle | 16T maintenance-free |
| Rear Axle Load Capacity | 18000(two-axis group)kg |
| Leaf Springs | 10/10/12 |
| Tire Spec | 12.00R20 18PR |
| Tire Count | 12 pcs |
| ABS | ● |
| Multifunction Steering Wheel | ● |
| A/C Type | Automatic |
| Power Mirrors | ● |
| Heated Mirrors | ● |
| Reversing Camera | ● |
| Electronic Central Lock | ● |
| Independent A/C | Yes |
| Center Console Screen | ● |
| Daytime Running Lights | ● |
| Front Brake | Drum |
| Rear Brake | Drum |
| Hydraulic Retarder | ● |
| Lane Departure Warning (LDWS) | ● |
| Autonomous Emergency Braking (AEB) | ● |
Delivery & Logistics
Production Lead Time25–50 days from PO + deposit
Sea Freight14–21 days to major SEA ports
Destination PortsTanjung Priok, Surabaya, Belawan, Cat Lai, Hai Phong, Cai Mep, Laem Chabang, Map Ta Phut
DocumentationCOO, Form E (ATIGA), Bilingual invoice, SNI test reports
FAQ
Q1: How do I know this used machine is in good condition?
A:
Every machine is carefully selected, inspected, and tested before sale. We only export equipment that passes our internal quality check on engine performance, hydraulic system, and structural condition. All photos and videos of used machines displayed on our website are real. So you can see the exact condition before making a decision.
Q2: Do you help with shipping and customs clearance?
A:
Yes. We provide full export support from start to finish. Our team helps you reduce risk and simplify the entire buying process.
Q3: Why should I buy used construction machinery from you?
A:
We are a subsidiary of XCMG (Xuzhou Construction Machinery Group), not a trading company or middleman. All Used Equipment is handled through a factory-direct process, including inspection, refurbishment, testing, and export procedures carried out under strict quality control standards.
This means you get:
1.Direct factory supply (no middlemen markup)
2.Authentic XCMG Equipment with traceable origin
3.Standardized inspection and testing process
4.Fully compliant export documentation
5.More stable quality and after-sales support system
We focus on providing reliable, transparent, and factory-supported used machinery solutions to global customers.
Q4: Can I inspect or verify the machine before buying?
A:
Yes. We fully support machine verification before purchase. If you cannot visit in person, we can provide live video inspection or third-party inspection services to ensure transparency.
Q5: How do I place an order?
A:
1.Send inquiry with model you want
2. We confirm availability and send details
3. You review videos and photos
4. Confirm order and pay deposit
5. We arrange shipment
Fast response via WhatsApp is available for quicker communication.
Our Services
✅ Pre-shipment Inspection: We provide a full inspection process before shipment, including machine testing, condition verification, and detailed reporting. Real working videos and photos are available so you can confirm the exact machine condition before delivery.
✅ Spare Parts Supply: We supply original XCMG Spare Parts at factory-direct pricing. Fast global shipping ensures your machine stays in operation with minimal downtime.
✅ After-sales Support: We provide 24/7 online technical support to assist with installation, operation, and maintenance issues.
Our Team
Reconditioning and Repairing Team
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
Issuing Report Team
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
Our Factory
